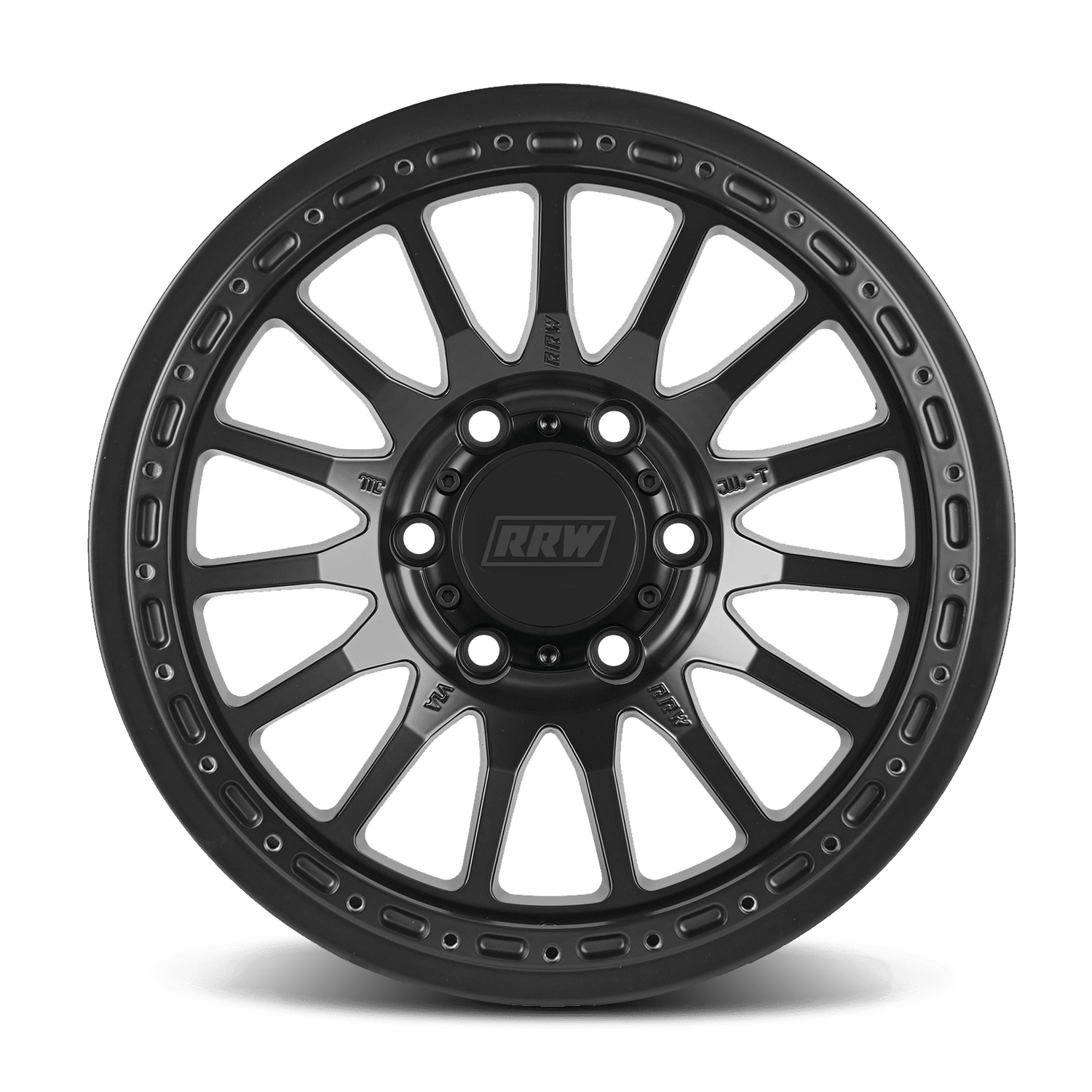

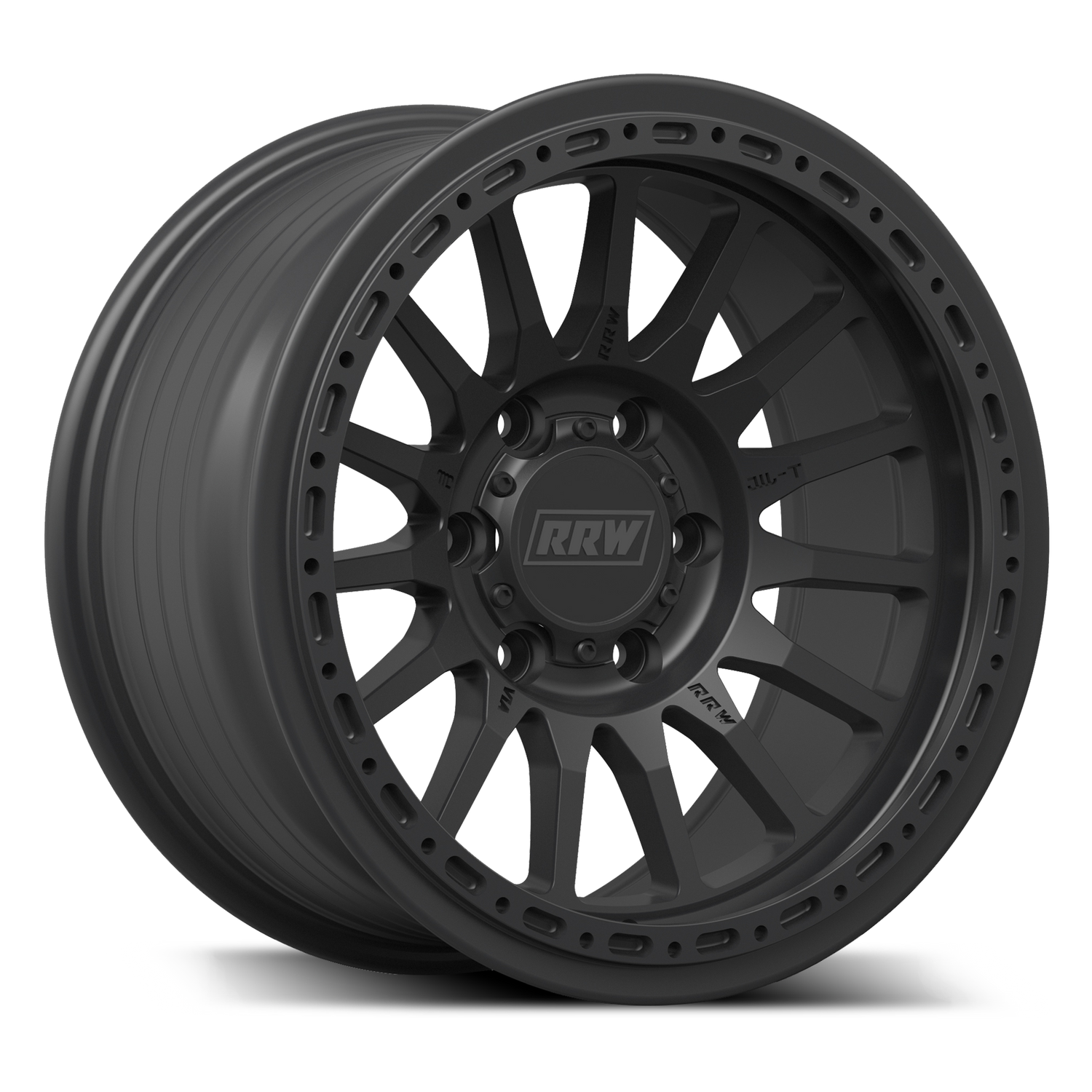

RR7-H FLOW FORMED Hybrid Beadlock Wheel | MATTE BLACK

Specifications

Size: 17x8.5
Bolt Pattern and offset: 5x150 +0, 6x135 +0, 6x5.5 / 6x139.7 +12, -25
Center Bore for 6x135: 87.1mm (hub-centric for F150 / Raptor)
Center Bore for 6x139.7 6x139.7 +12: 95.1mm (hub-centric for 4g Tacoma, 3G Tundra, 6G 4Runner, Landcruiser 250, GX550)
Center Bore for 6x139.7 -25: 106.1mm (hub-centric for 3G Tacoma, 5G 4Runner, GX470)
Weight of +0: ~23.5lbs
Load Rating: 2500 lbs
Backspacing: varies
Compatible with TPMS and Extended Thread (ET) Lugs

Vehicle Fitment

5x150: 2G Tundra
6x135: Ford F150 / Raptor
6x139.7 -25: 3G Toyota Tacoma (2023 and older), 5G 4Runner, FJ, Lexus GX470, Chevy Silverado 1500
6x139.7 +12: 4G Tacoma (2024+) / Silverado 1500 (2019+)

Manufactured in a JWL/VIA Certified Facility and tested to meet and exceed OEM specifications

RR7-H with the true beadlock ring is for offroad use ONLY and NOT street use. Renders are for reference only.

Please note: renders are for reference only.
