RR5-H FLOW FORMED 17x8.5 Hybrid Beadlock | BRUSHED ALUMINUM

Specifications

Size: 17x8.5
Offset: -12 / +25
Bolt Pattern: 6x5.5 / 6x139.7
Center Bore for -12: 106.1mm (hub-centric for Toyota trucks, GX)
Center Bore for +25: 95.2mm (hub-centric for 24+ Tacoma, 22+ Tundra, 24+ 4Runner, Landcruiser 250, GX550)
Backspacing: -12 is 4.28", +25 is 5.73"
Weight of -12: ~24.6lbs, +25: ~25.3lbs
Load Rating: 2500 lbs
Compatible with TPMS and Extended Thread (ET) Lugs

Vehicle Fitment

6x5.5 -12: Toyota Tacoma (2023 and older), 5G 4Runner, FJ, Lexus GX470, Chevy Silverado
6x5.5 +25: Toyota Tacoma (4G 2024+), Tundra (3G 2022+), 4Runner (6G 2024+), Landcruiser 250, Lexus GX550, Ford Ranger, Bronco

Manufactured in a JWL/VIA Certified Facility and tested to meet and exceed OEM specifications

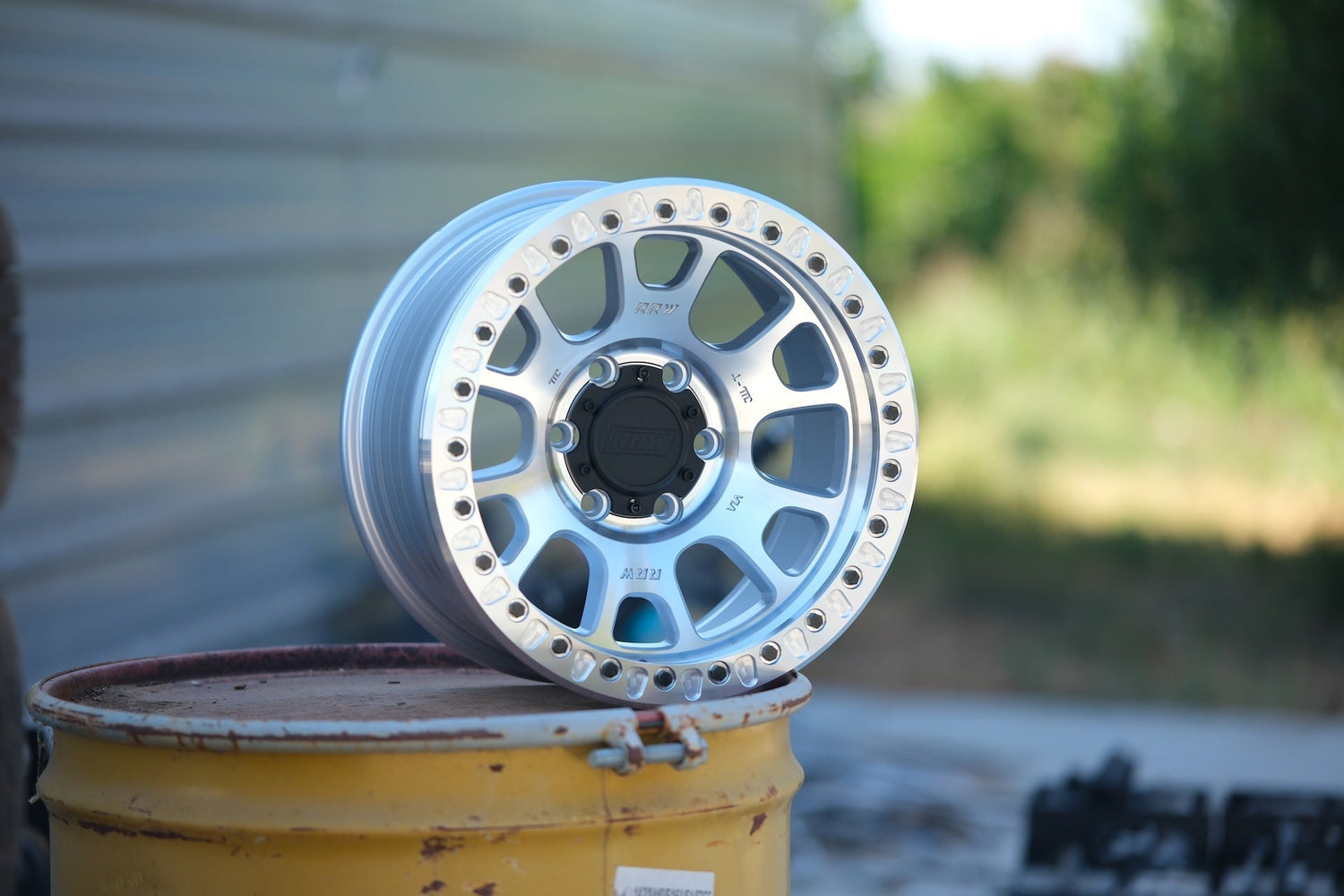

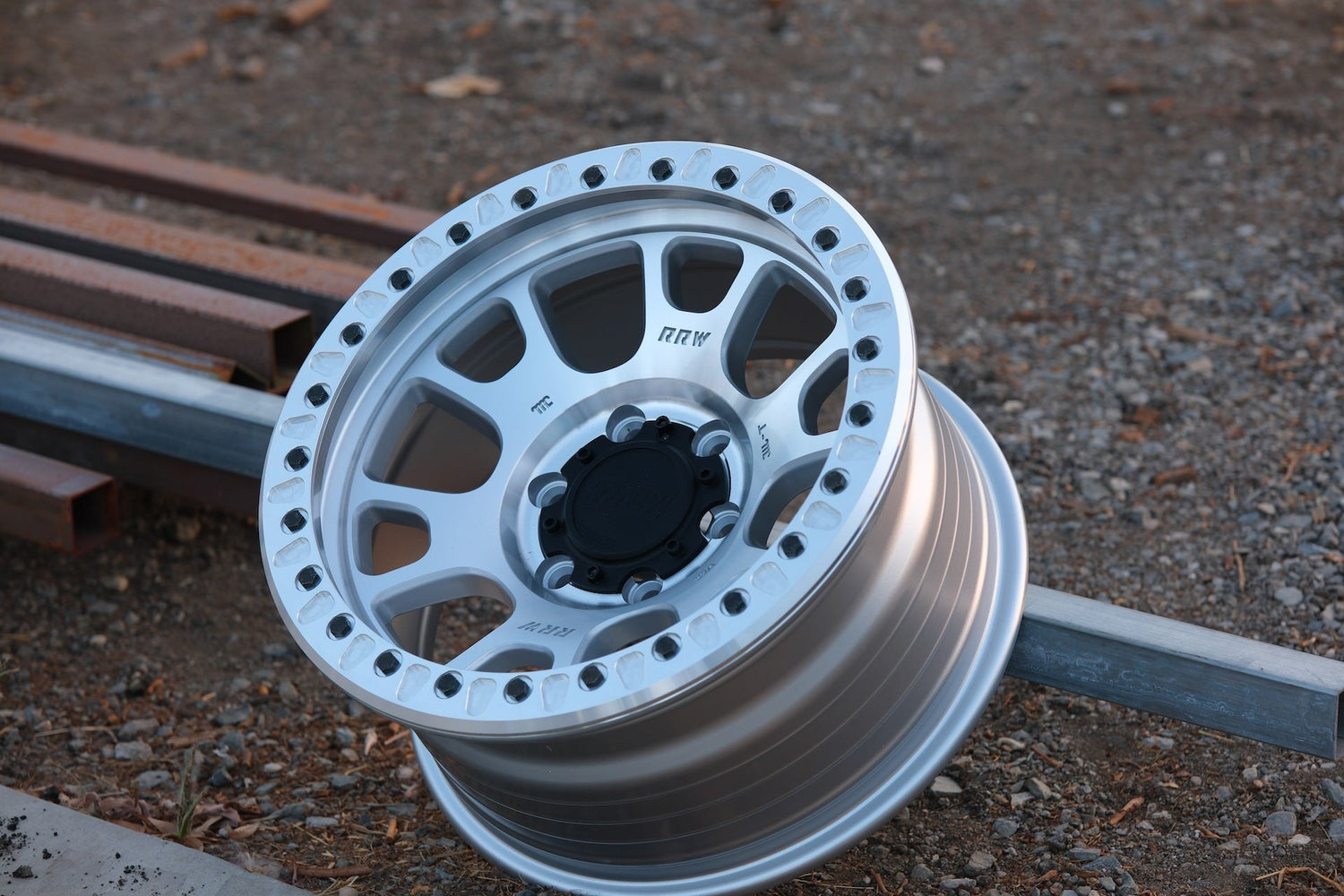

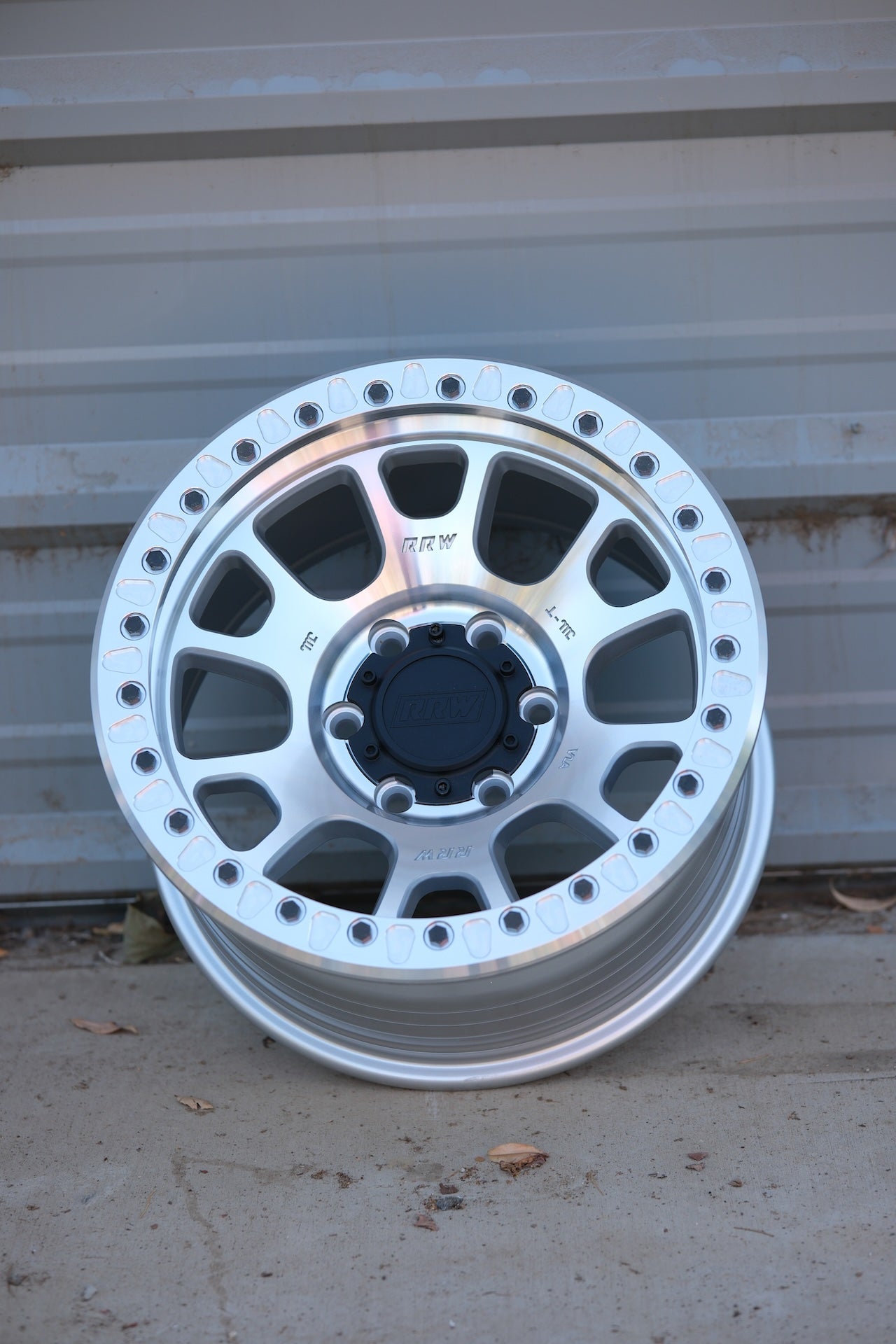

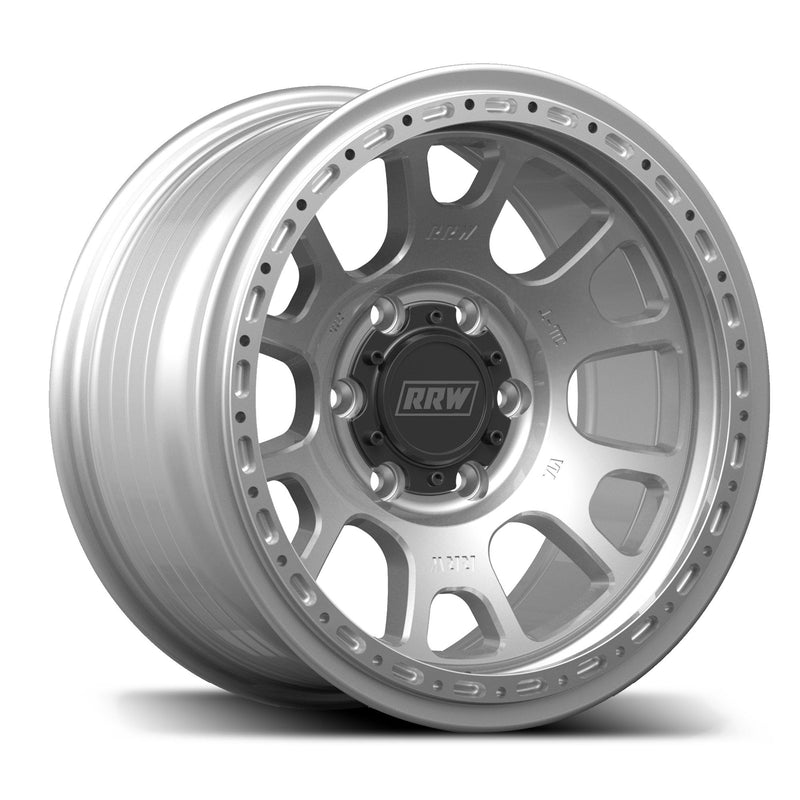

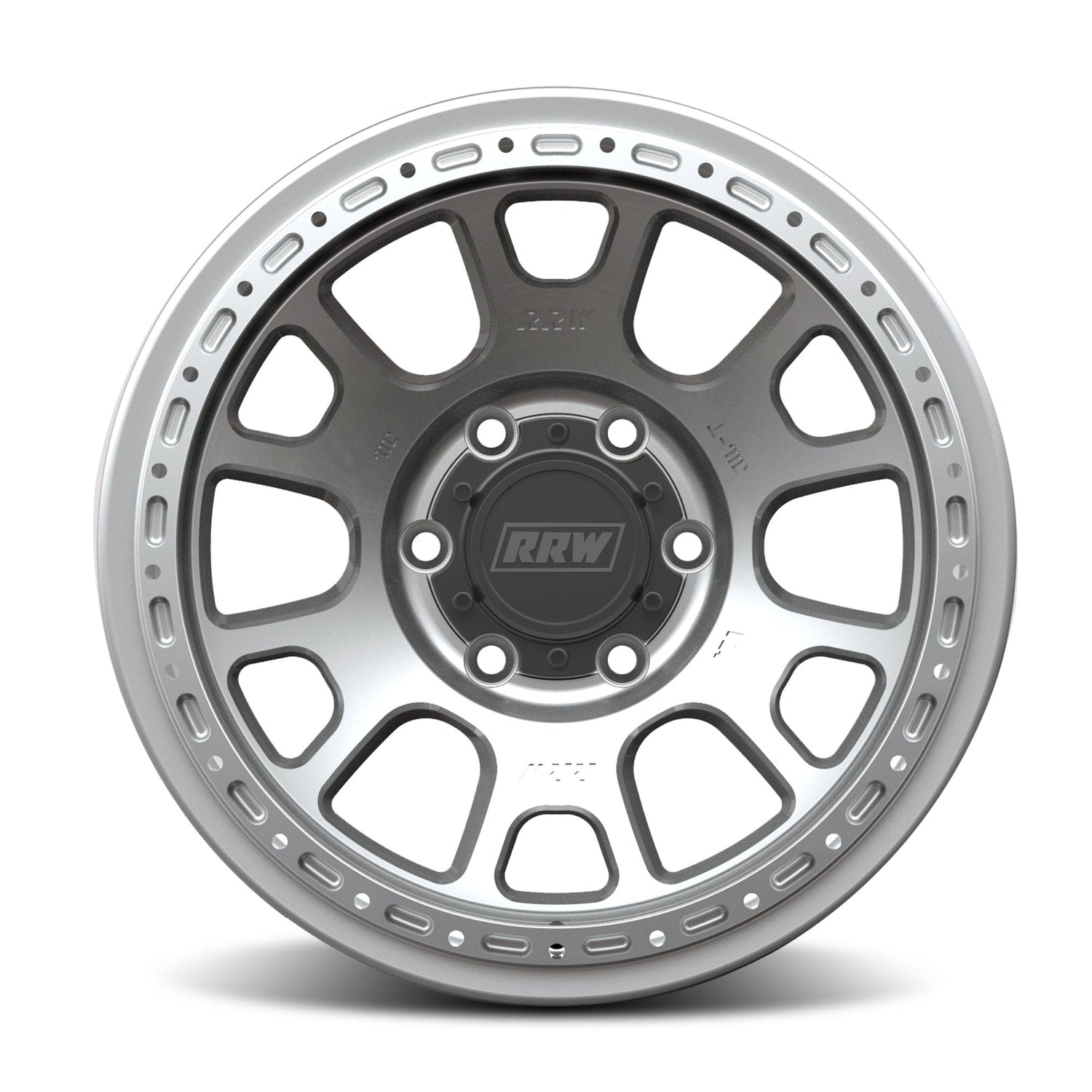

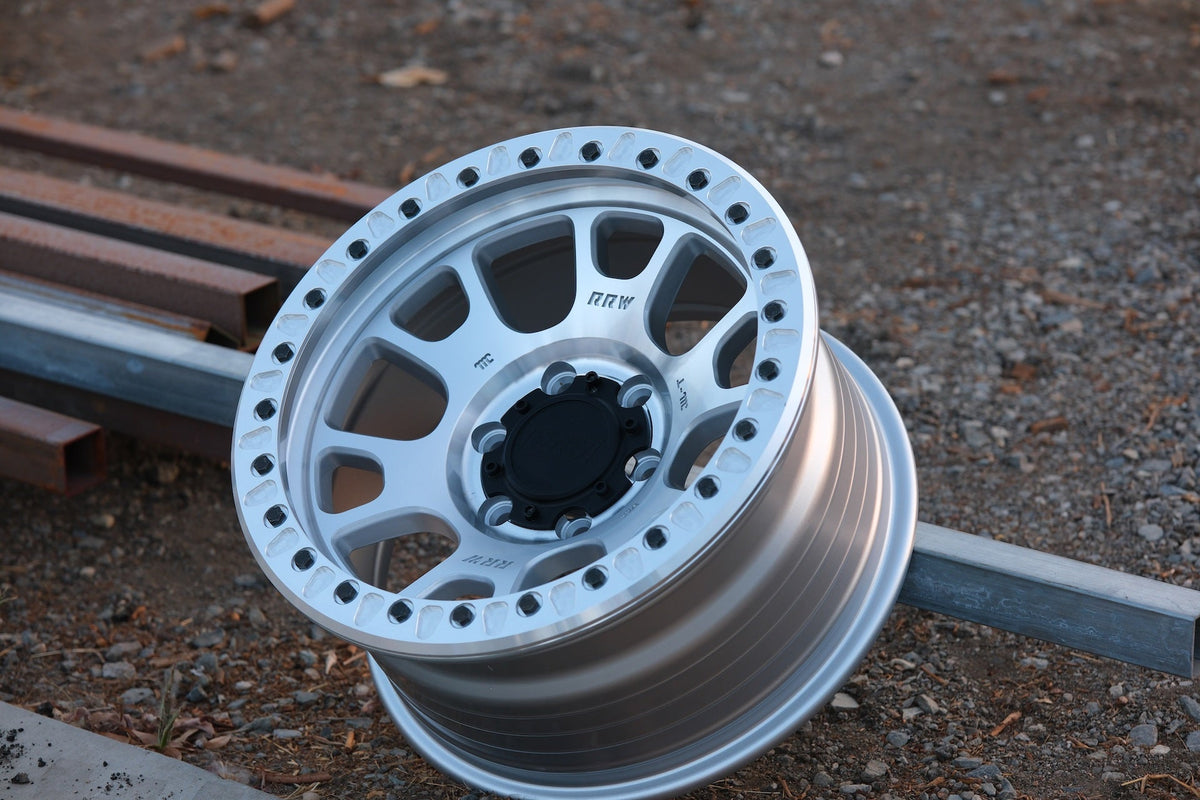

 Note: Renders are for reference only. Environment photos of the wheel have a raw billet protection ring with black bolts installed. Rings are not included and must be purchased separately.
